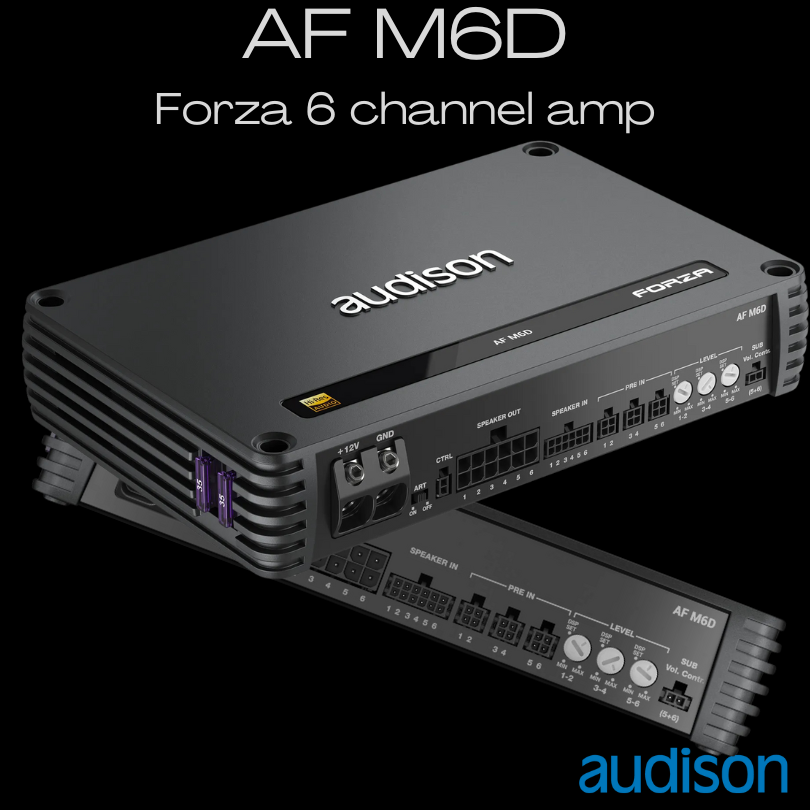

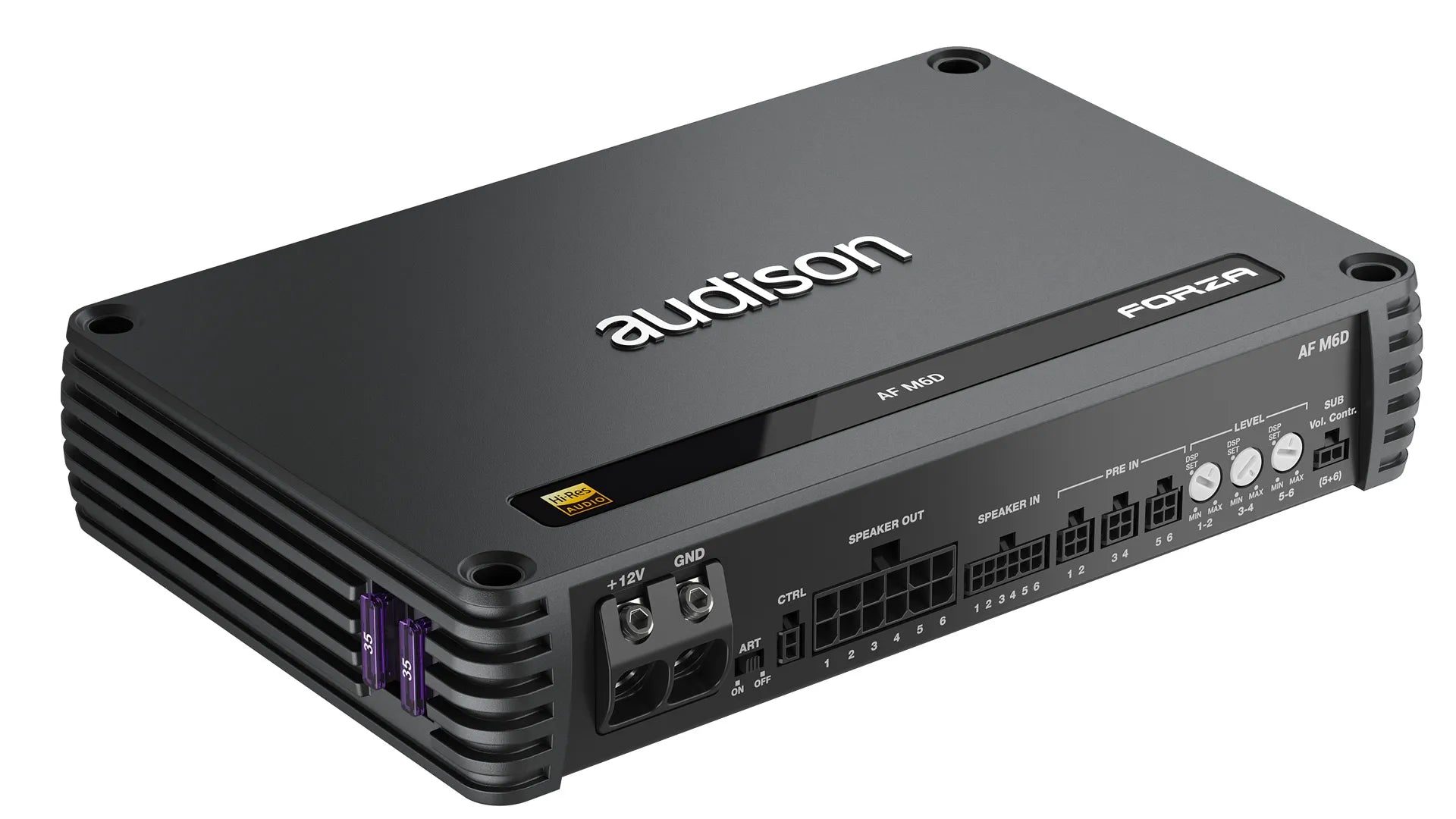

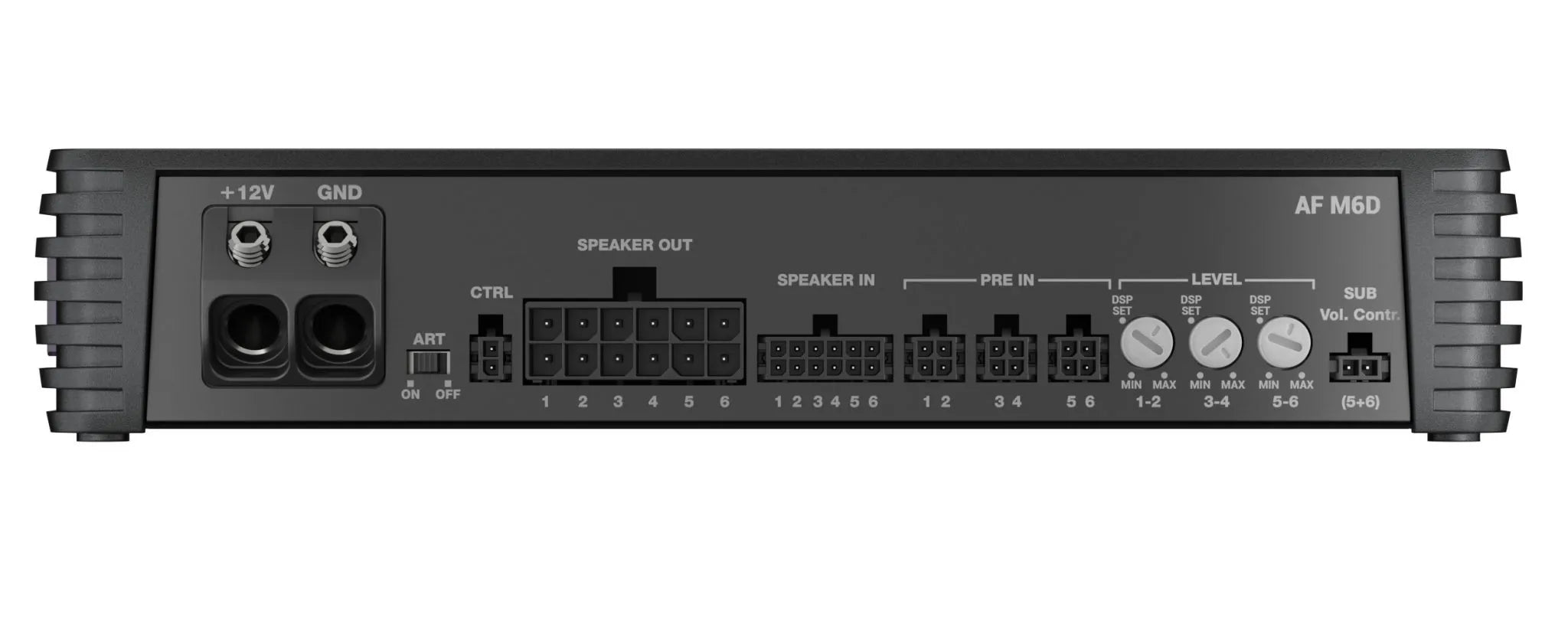

Forza AF M6D

6ch amplifier

6 x 135W

Specifications

Power Supply

• Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
• Pulse operating voltage: 6.5 ÷ 17.5 VDC
• Idling current: 1.0 A
• Standby current draw: 0.009 mA
• Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 60 A
• Remote IN: 4 ÷15 VDC (1 mA)
• Remote OUT: 6.5 ÷15 VDC (150 mA)
• ART – Automatic Remote Turn on/off from Speaker-In: 1.5V DC
• Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%

Amplifier Stage

• Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.04%
• Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
• Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
• Minimum load impedance
  • 6Ch: 2Ω
  • 3 Ch – (Bridge 1/2; 3/4; 5/6): 4Ω
• Output Continuous Power (RMS) @14.4 VDC, 1% THD:
  • 6 Ch @ 4Ω: 135 W x 6
  • 6 Ch @ 2Ω: 220 W x 6
  • 3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3

CEA

• Output power @ 4Ω, 1% THD+N, 14.4 V: 130 W x 6
• SN ratio (ref. 1 W output): 80 dB
